Each refrigerated body is equipped with our thermally efficient insulation and refrigeration systems designed to keep your goods at the right temperature throughout delivery.

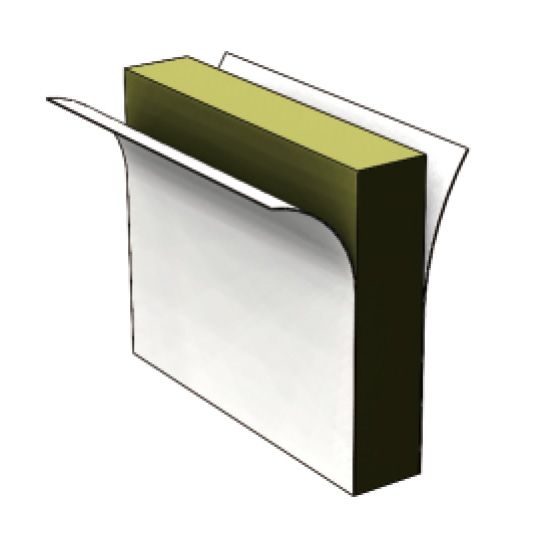

The insulation layer of the wall panel adopts XPS board with a foam density of 35Kg/m3 (B2 grade flame retardant), with a 2mm high-strength FRP board on the outer layer and a 1.5mm food grade high-strength FRP board on the inner layer.

Energy-Efficient Refrigerated Bodies

These insulated bodies are easy to operate and handle a wide variety of payload and delivery needs.

The floor insulation layer is made of XPS board (B2 grade flame retardant) with foam density of 35Kg/m3 covered with 12mm high-density bamboo plywood, the surface is 3.5mm pattern aluminum plate, and T-shaped aluminum profile floor or FRP pattern board can also be selected.

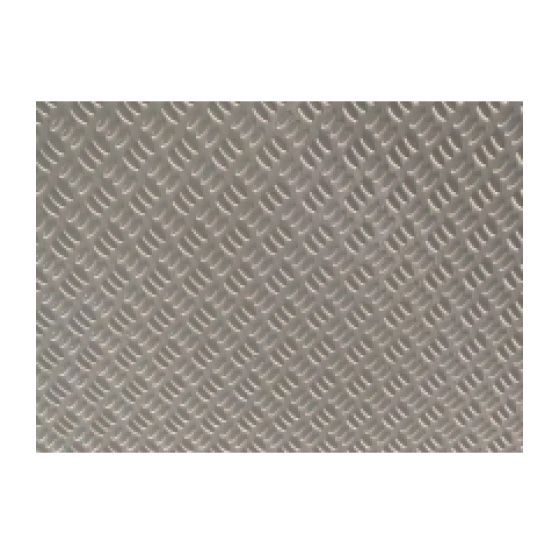

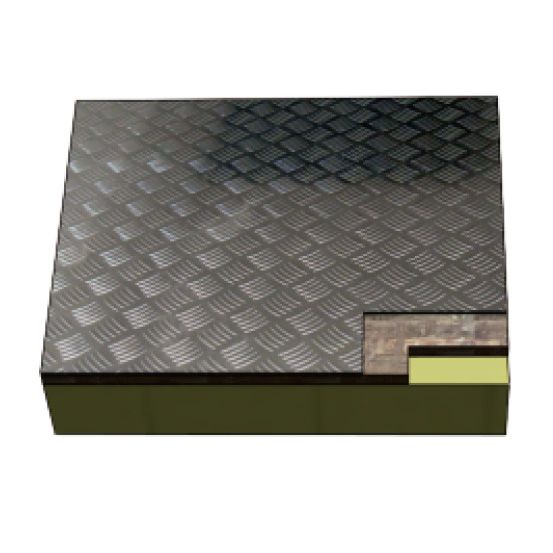

3.5mm pattern aluminum floor board

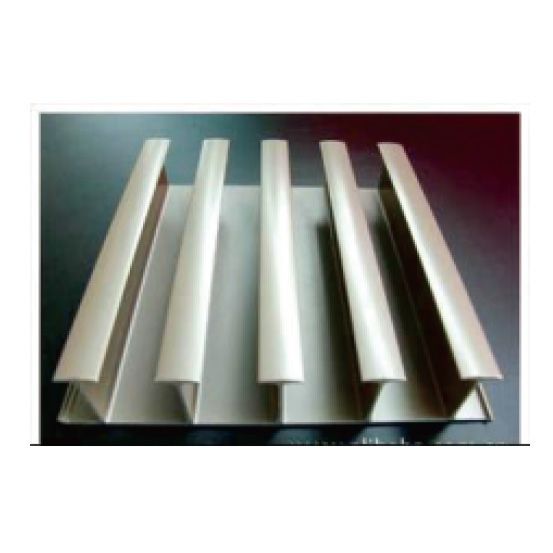

T-shaped aluminum profile floor board

3.5mm FRP pattern floor board

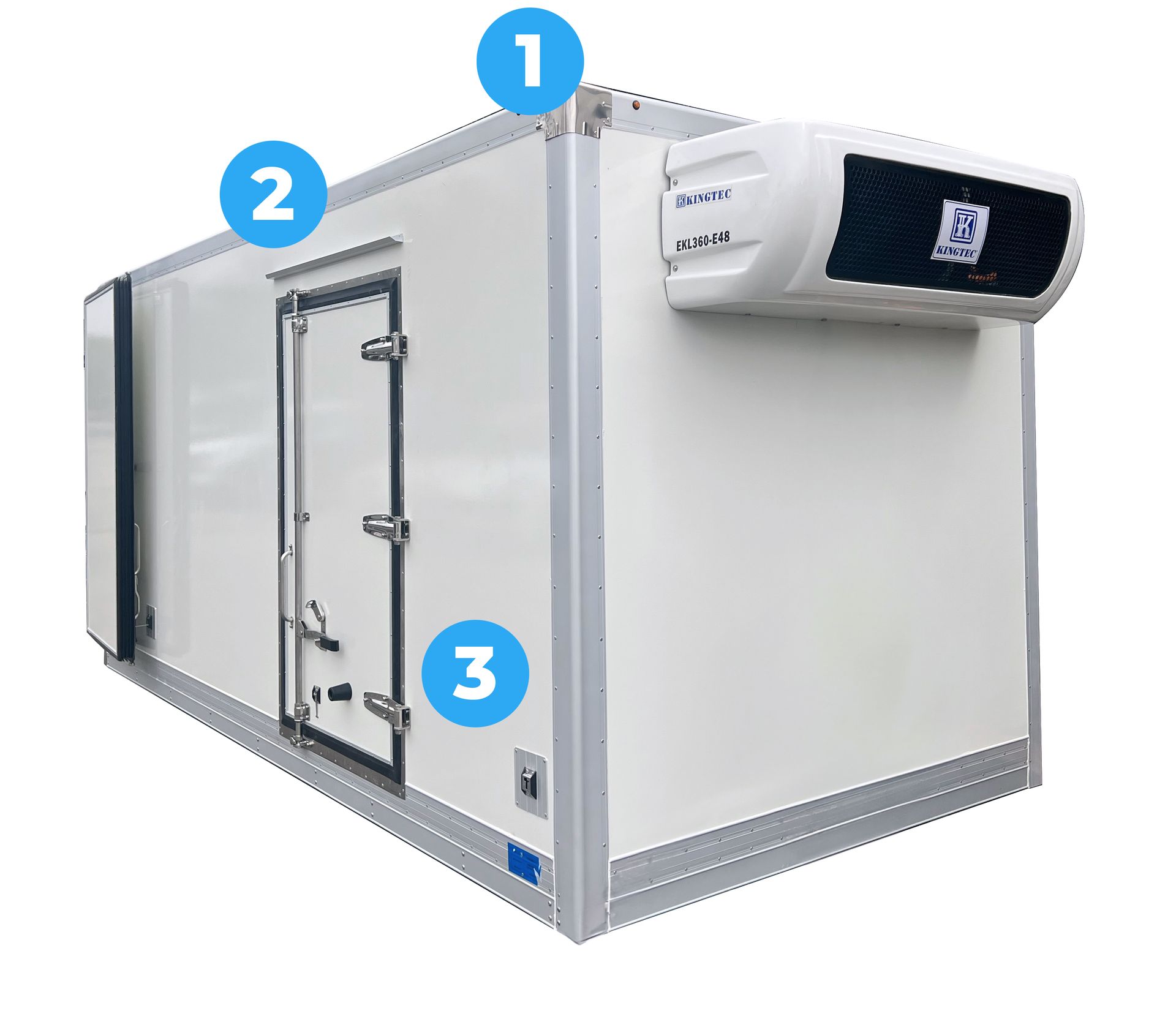

4.3"*4.3"Upper-Aluminium extrusion profile (Sandblasting & Electroplating)

Corner Cap (304 Stainless steel)

6.5"*1.S" Bottom-Aluminium extrusion profile (Sandblasting & Electroplating)

4.3"*4.3"Upper-Aluminium extrusion profile (Sandblasted & Electroplated)

Corner Cap (304 Stainless steel)

6.5"*1.S"Bottom-Aluminium extrusion profile (Sandblasted & Electroplated)

Body Specifications

12 ft 16 ft 18 ft
EXTERNAL DIMENSIONS L12ft x W96in x H86in L16ft x W96in x H90in L18ft x W96in x H96in
INSULATED COMPOSITE 3in (4in optional) 3in (4in optional) 3in (4in optional)
INTERIOR VOLUME 610 Cu Ft 860 Cu Ft 984 Cu Ft
BODY WEIGHT 2000 lbs 2900 lbs 3300 lbs

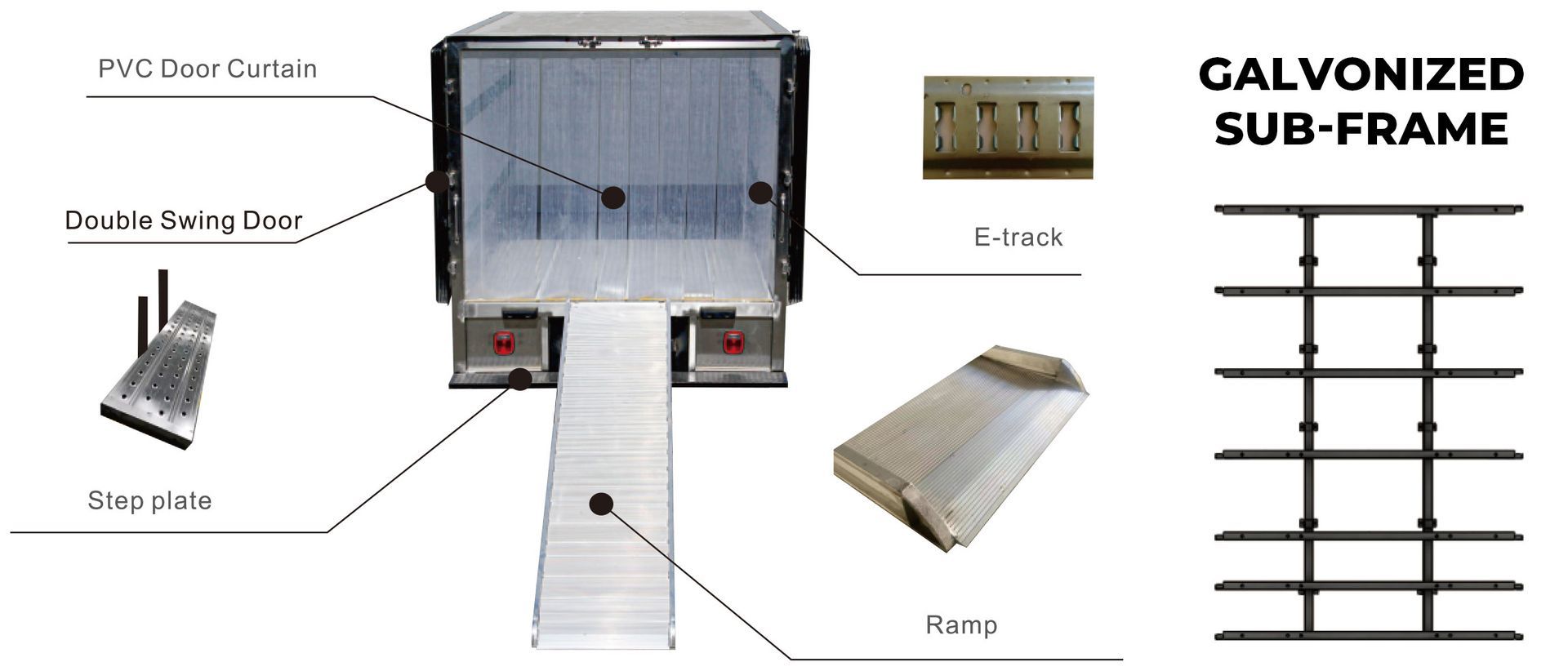

DOUBLE SWING DOOR Standard Standard Standard
ROLL-UP DOOR Optional Optional Optional
TRANSPORT REFRIGERATION UNIT FR500E FR600E FR660E
RAMP Optional Optional Optional
STEP BUMPER L78.5in x W10in L78.5in x W10in L78.5in x W10in

Sample Body Specifications

12 ft 16 ft 18 ft
EXTERNAL DIMENSIONS L12ft x W96in x H86in L16ft x W96in x H90in L18ft x W96in x H96in
INSULATED COMPOSITE 3in (4in optional) 3in (4in optional) 3in (4in optional)
INTERIOR VOLUME 610 Cu Ft 860 Cu Ft 984 Cu Ft
BODY WEIGHT 2000 lbs 2900 lbs 3300 lbs
DOUBLE SWING DOOR Standard Standard Standard
ROLL-UP DOOR Optional Optional Optional
TRANSPORT REFRIGERATION UNIT EKL 320 EKL 360 EKL 660
RAMP Optional Optional Optional
STEP BUMPER L78.5in x W10in L78.5in x W10in L78.5in x W10in

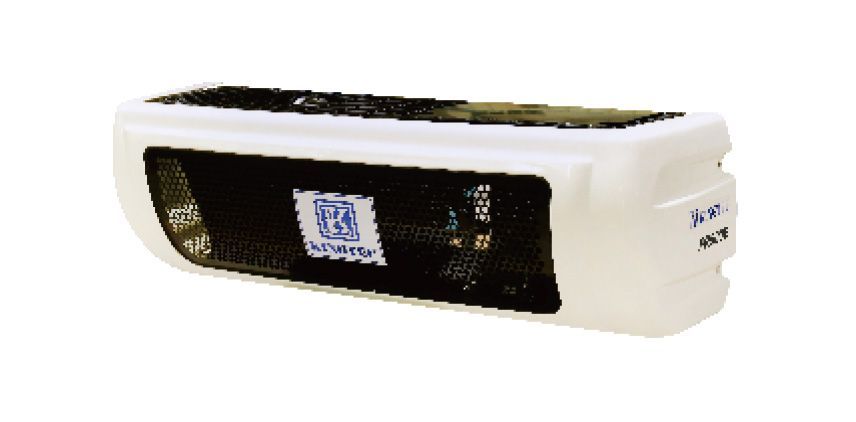

All-Electric Refrigeration Units

EKL 320

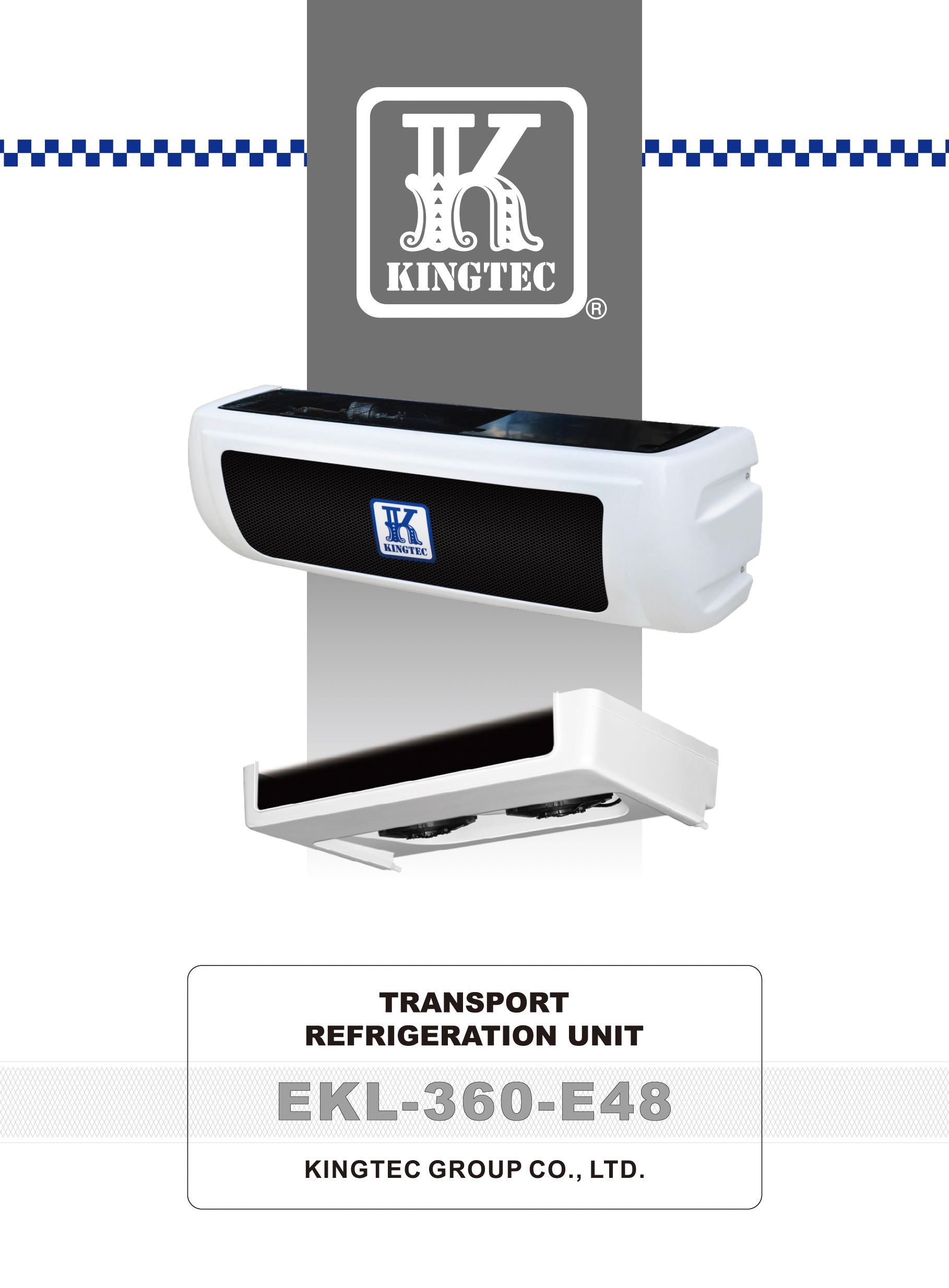

EKL 360

EKL 660

Components

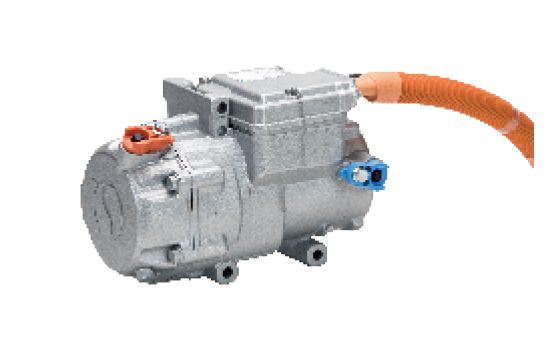

All Electric 48V Compressor

Battery Pack

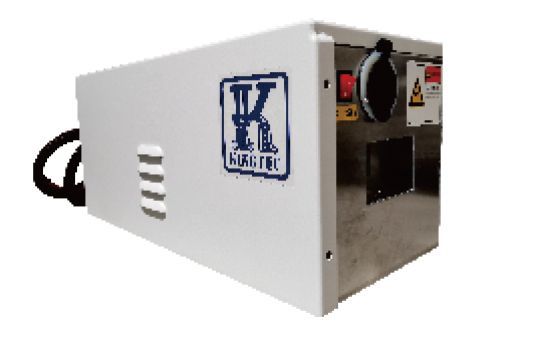

AC220V to DC48V 80A Charger
